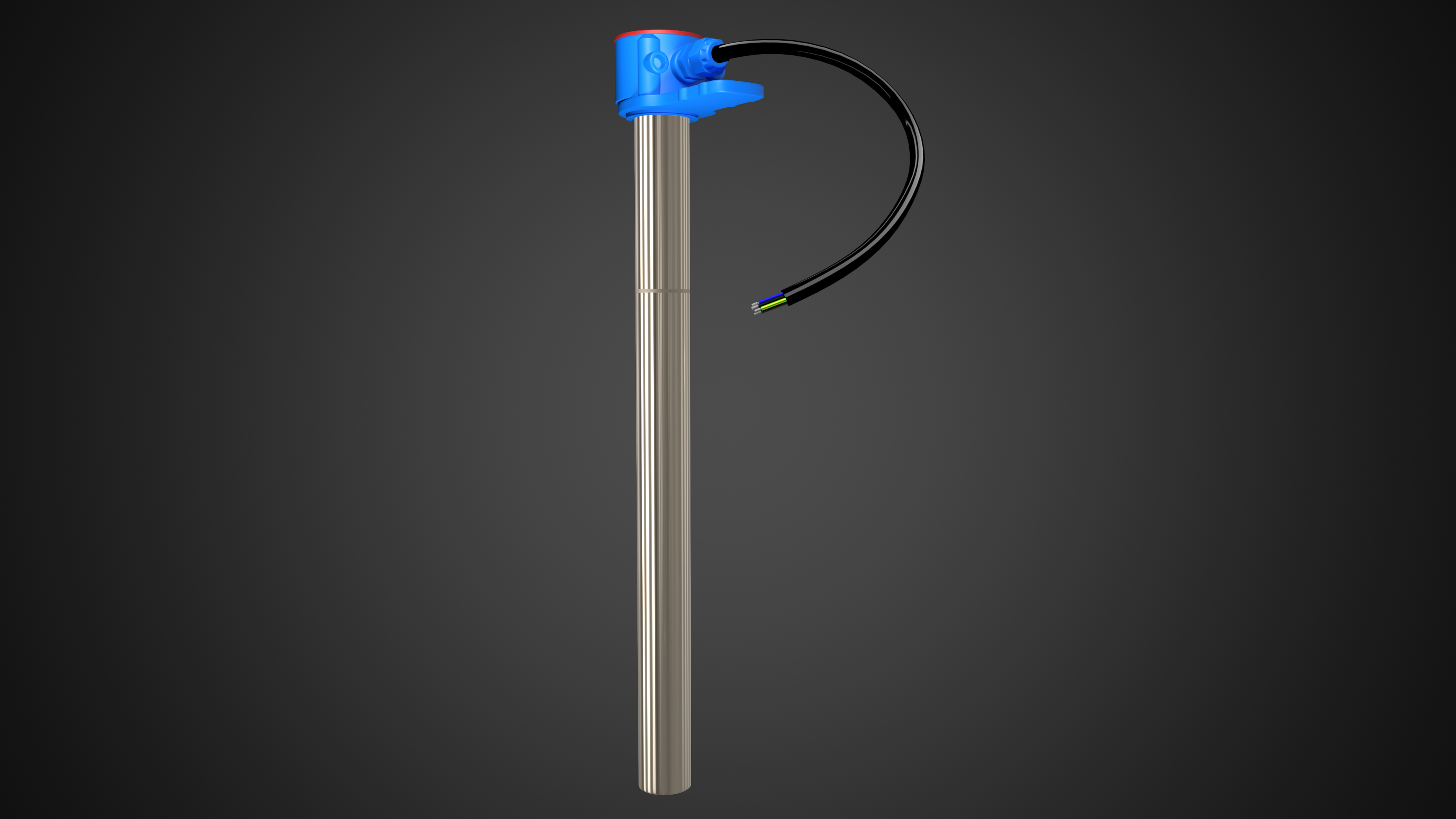

STI-ST

• Inert to most acids the whole submersed part is in Titanium Grade 2.
• Standard vertical range 1,0 - 4,5 kW in 1x230V, 3x230V, 3x400V.
• 2,1 - 2,8 watt/cm2 Titanium Grade 2 grounded ceramic element for max. 70°C process temperature.
• Vapor-resistant polypropylene connection enclosure, connected with PVC cable 2 mtr.
• Tested and certified by VDE according to EN-norms.
• Option:
  - Longer electric cablings
  - Vapor resitstant PVDF connection enclosure connected with high-temperature cablings
    for max. 100°C process temperature
  - Fixture in PP for easy installation and maintenace of heater.

Attachments

• User maual
