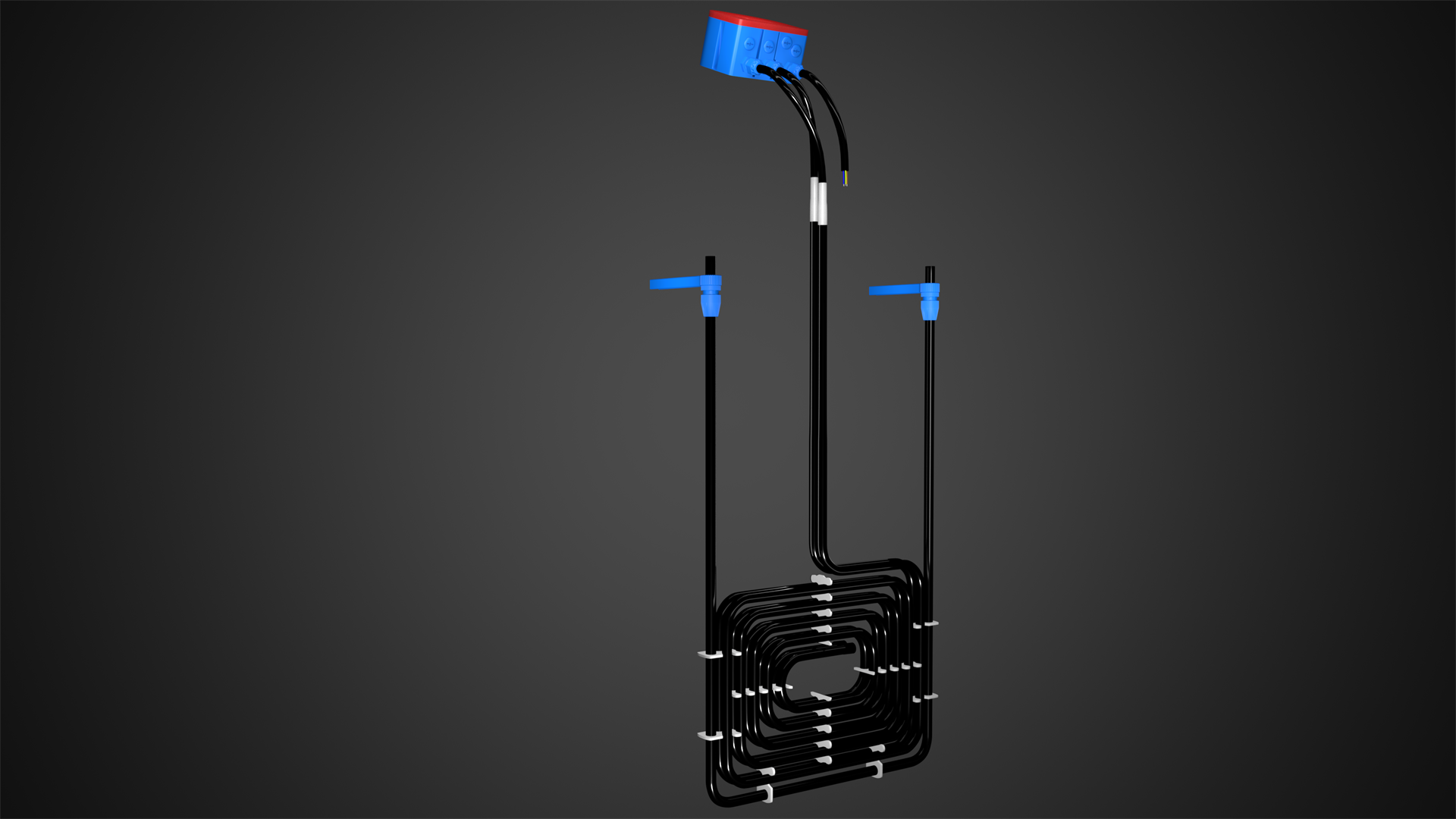

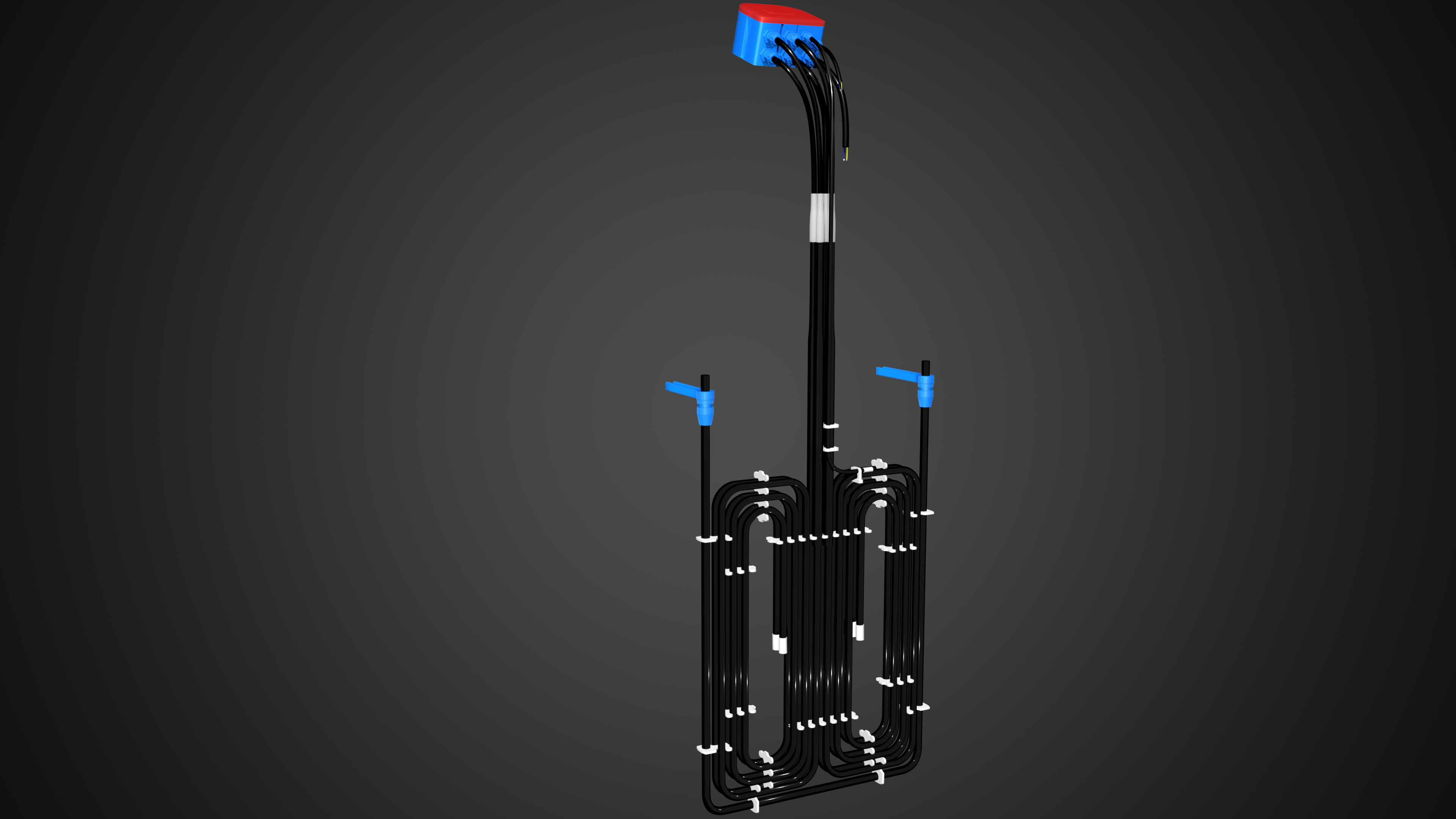

STFX

• Inert to most acids and alkalines as the whole submersed part is in PTFE.
• Standard vertical range 1x230V 0,5 - 6 kW and 3x400V 2,25 - 15 kW.
• 1,5 - 2 watt/cm2 PTFE covered stainless steel 316L grounded element for max. 90 C process temperature.
• Compact standard heater design with flexible submersible riser and rigid distance feet in PTFE.
• Modular design individually replaceable element, easy to overview and clean.
• Tested and certified by VDE according to EN-norm.
• Option:
  - Bimetallic overheat protection (OHP1)
  - Longer submersible riser and electric cablings
  - Different modular frame designs available for easy installation and maintenance

• Available in bottom mount heater design.

Attachments

• User manual
• Installation manual
